Standard Radio 37
Bell Telephone Mfg. Co. (Radiobell); Antwerp
- Country
- Belgium
- Manufacturer / Brand
- Bell Telephone Mfg. Co. (Radiobell); Antwerp
- Year
- 1937 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 329092
-
- Brand: Radiobell
Frontansicht schräg

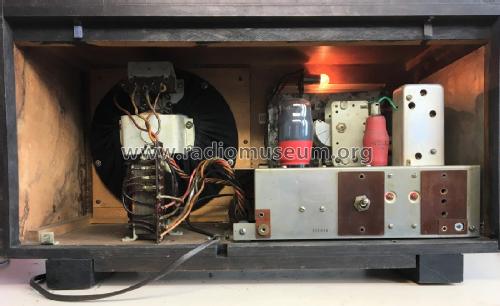

Rückseite offen
Rückwand
Frontansicht totale
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 435 kHz; 1 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 120; 135; 150; 220; 250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Standard Radio 37 - Bell Telephone Mfg. Co.
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 530 x 290 x 240 mm / 20.9 x 11.4 x 9.4 inch
- Notes
-
Schaltbild entspricht Radiobell 438. Die Röhre EB4 ist nicht auf der Rückwand aufgeführt.
Achtung: Spartrafo, keine Netzisolation, Chassis kann Netzspannung führen.
This receiver was built by Bell in Antwerp and uses the chassis of Radiobell 438. It was probably meant for export (e.g. Norway). Perhaps the back cover of the pictured radio is not original, as it doesn't mention tube EB4.
- Author
- Model page created by Rolf Beckers. See "Data change" for further contributors.
