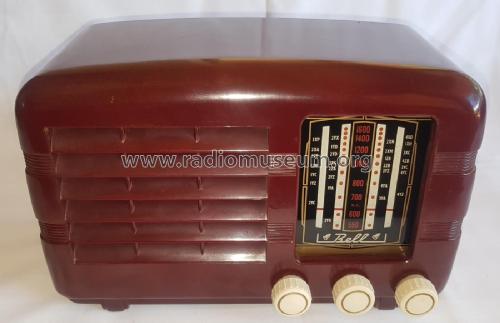

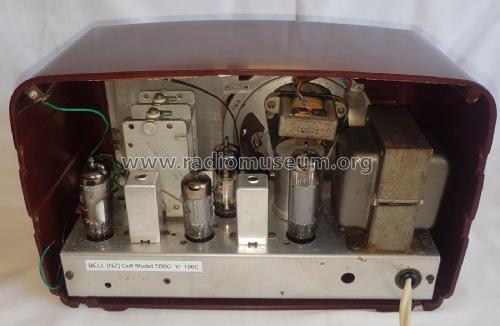

Colt 5B60

Colt 5B60; Bell Radio- (ID = 1645738) Radio
Colt 5B60; Bell Radio- (ID = 2377847) Radio Colt 5B60; Bell Radio- (ID = 2377848) Radio
Colt 5B60; Bell Radio- (ID = 2377846) Radio Colt 5B60; Bell Radio- (ID = 1644552) Radio
Colt 5B60; Bell Radio- (ID = 1644553) Radio Colt 5B60; Bell Radio- (ID = 1644554) Radio
Colt 5B60; Bell Radio- (ID = 1644555) Radio Colt 5B60; Bell Radio- (ID = 1644556) Radio
Colt 5B60; Bell Radio- (ID = 1644557) Radio Colt 5B60; Bell Radio- (ID = 1644558) Radio
Use red slider bar for more.
Colt 5B60; Bell Radio- (ID = 2377847) Radio
Bell Radio-: Colt 5B60 [Radio] ID = 2377847 1399x1004
Select picture or schematic to display from thumbnails on the right and click for download.
For model Colt 5B60, Bell Radio-Television Corporation

Country:  New Zealand
Manufacturer / Brand:  Bell Radio-Television Corporation
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EF89 EBC81 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
Power out
from Radiomuseum.org Model: Colt 5B60 - Bell Radio-Television
Material Bakelite or Plastics (type unknown)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 11 x 7 x 6 inch / 279 x 178 x 152 mm
Notes

Bell (New Zealand) Model Colt 5B60

Known colours: Cream White, Light Green, Burgundy and Ivory.

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 27.00 Aus $

Model page created by Bruce Wilkie. See "Data change" for further contributors.



All listed radios etc. from Bell Radio-Television Corporation
Here you find 11 models, 11 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
