• Country
• United States of America (USA)

• Manufacturer / Brand
• Bell Sound Systems; Columbus (OH)

• Year
• 1953 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 283231

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12SC7 6SL7GT 6SN7GTA 6SL7GT 5881 5881 5U4G

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: High Fidelity Amplifier 2200 - Bell Sound Systems; Columbus

• Shape
• Tablemodel, low profile (big size).

• Notes

• Bell Sound model 2200 is an AC operated 7 channel audio amplifier. Integrated amplifier, mono, with 5 phono equalizer settings.

• Literature/Schematics (4)

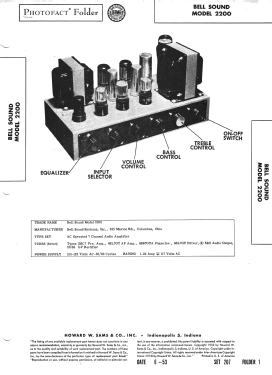

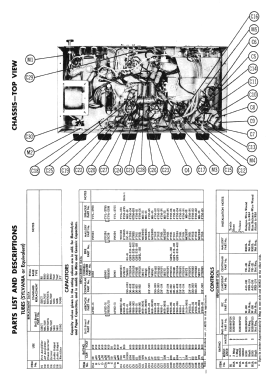

• Photofact Folder, Howard W. SAMS (Set 207, folder 1, dated 6-53)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
