6D14

6D14 ; Belmont Radio Corp. (ID = 2420615) Radio 6D14 ; Belmont Radio Corp. (ID = 2420616) Radio
6D14 ; Belmont Radio Corp. (ID = 2420617) Radio 6D14 ; Belmont Radio Corp. (ID = 2420618) Radio
Use red slider bar for more.
6D14 ; Belmont Radio Corp. (ID = 2420615) Radio
Belmont Radio Corp.: 6D14 [Radio] ID = 2420615 1211x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model 6D14, Belmont Radio Corp. (B.R.C.); Chicago, Ill.:
..worthpoint.com/worthopedia/vintage-1947-belmont-6d14-radio-1828836910

Country:  United States of America (USA)
Manufacturer / Brand:  Belmont Radio Corp. (B.R.C.); Chicago, Ill.
Year: 1947 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SA7 12SK7 12SK7 12SQ7 35L6GT 35Z5GT
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115V = 110 -120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 6D14 - Belmont Radio Corp. B.R.C.;

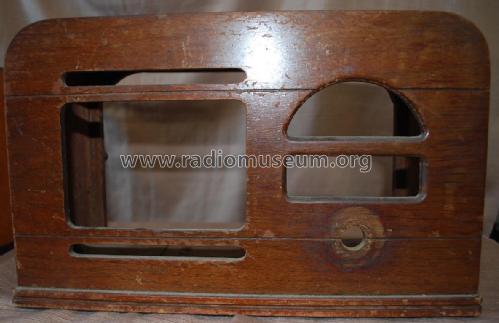

Material Wooden case
Shape Tablemodel with Push Buttons.

Model page created by Gary Streeter. See "Data change" for further contributors.



All listed radios etc. from Belmont Radio Corp. (B.R.C.); Chicago, Ill.
Here you find 428 models, 196 with images and 370 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
