• Country
• United States of America (USA)

• Manufacturer / Brand
• Belmont Radio Corp. (B.R.C.); Chicago, Ill.

• Year
• 1942 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 34323

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6S7G 6SA7 6S7G 6T7G 6L5G 6SC7 0Z4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Line / Batteries (any type) / AC: 115; 230 / DC 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

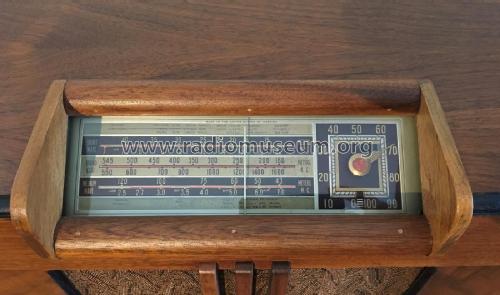

• Model: 7H31 - Belmont Radio Corp. B.R.C.;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 19.5 x 12.5 x 12 inch / 495 x 318 x 305 mm

• Net weight (2.2 lb = 1 kg)
• 26 lb (26 lb 0 oz) / 11.804 kg

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 13 = 1942 and before
