• Country
• United States of America (USA)

• Manufacturer / Brand
• Belmont Radio Corp. (B.R.C.); Chicago, Ill.

• Year
• 1945

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 34198

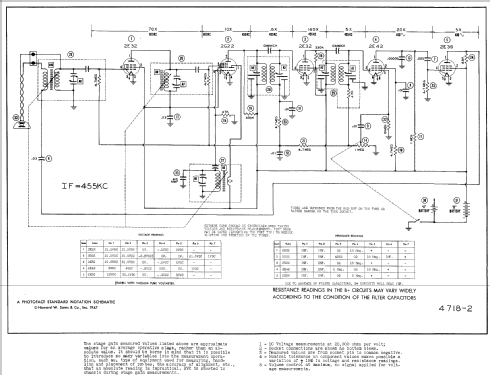

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 2E32 2G22 2E32 2E42 2E36

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1.25 & 22.5 Volt

• Loudspeaker
• - only for Earphone!

• Material
• Metal case

• from Radiomuseum.org

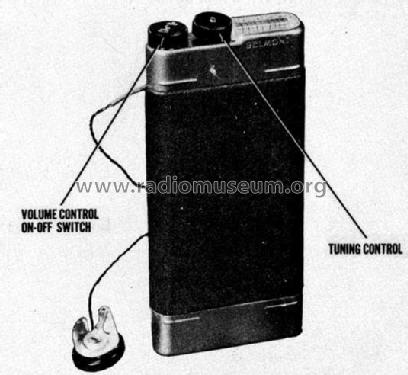

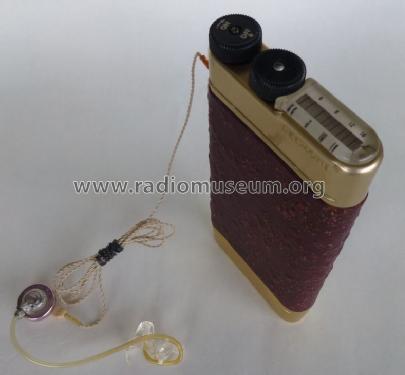

• Model: 5P113 [Boulevard] - Belmont Radio Corp. B.R.C.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes
• Erster Westentaschen-Superhet der Welt.
  See also Photofact Folders, Sams, Date 11-47, Set 28, Folder 4718-2.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 16 = ca. 1948 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965 (GFGF Funkgeschichte Nr. 106 (1996))

• Literature/Schematics (1)
• The Portable Radio in American Life (p.163)

• Other Models

• Here you find 442 models, 205 with images and 383 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Belmont Radio Corp. (B.R.C.); Chicago, Ill.
