• Country
• United States of America (USA)

• Manufacturer / Brand
• Bendix Radio Division; Baltimore, MD

• Year
• 1947 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 363173

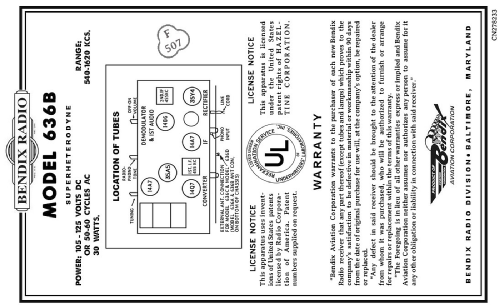

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 14A7 14Q7 14A7 14B6 35A5 35Y4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 636B - Bendix Radio Division;

• Shape
• Tablemodel, with any shape - general.

• Notes

• Built in loop antenna.

• Mentioned in
• Collector's Guide to Antique Radios (7th Edition) (page 50)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 14, Folder 4, July 1947)

• Author
• Model page created by Glen Orriss. See "Data change" for further contributors.
