• Year
  • 1946
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 34403

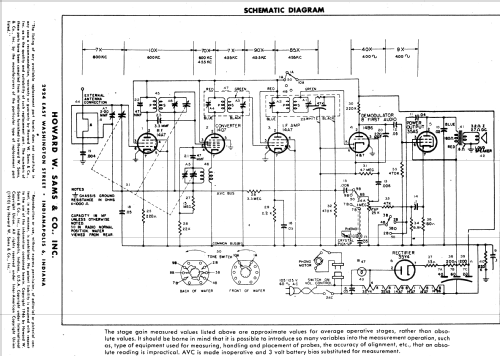

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 8 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105 - 125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Power out
  • 1.2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 656A - Bendix Radio Division;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 21.5 x 10.5 x 16 inch / 546 x 267 x 406 mm
  • Notes
  • Record Changer: General Instrument, Model 205. See also Sams photofact, set 2, folder 462-31, date 7-46. 535-1725 kc.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 15 = 1947 and before
