• Country
• United States of America (USA)

• Manufacturer / Brand
• Bendix Radio Division; Baltimore, MD

• Year
• 1946–1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 34423

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6AG5 7F8 7AH7 7AG7 6H6 6SQ7 6V6GT 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

• Power out
• 4.2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

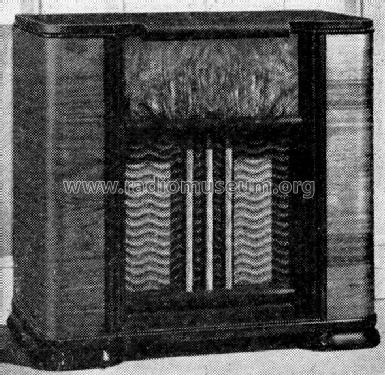

• Model: 847-B - Bendix Radio Division;

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 34.5 x 33 x 18.2 inch / 876 x 838 x 462 mm

• Notes
• Tunes 540 to 1620 kc on standard broadcast, 88 to 108 mc for FM. Built-in dipole antenna for FM - "Super Signal" aerial for standard.

• Net weight (2.2 lb = 1 kg)
• 43 kg / 94 lb 11.4 oz (94.714 lb)

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

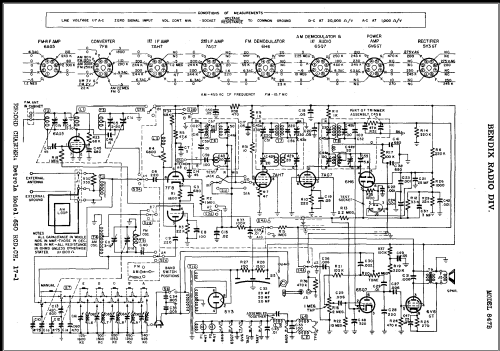

• Circuit diagram reference
• Rider's Perpetual, Volume 17 = 1948 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Radio Retailing (Radio & Television R.) (January 1947 page 52.)

• Literature/Schematics (4)
• Photofact Folder, Howard W. SAMS (Set 27, Date 10/47, Folder 4717-5)
