Automatic Direction Finder ADF-T-12Cg

Bendix Radio Division; Baltimore, MD

  • Year
  • 1966 ?
  • Category
  • Commercial Receiver (may include amateur bands)
  • Radiomuseum.org ID
  • 275544

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 142,5 kHz
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 14/28 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Automatic Direction Finder ADF-T-12Cg - Bendix Radio Division;
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 165 x 75 x 190 mm / 6.5 x 3 x 7.5 inch
  • Notes
  • Funkkompass für Flugzeuge zum Empfang ungerichteter Funkfeuer und von Radiosendern.
    Frequenzbereiche 190 - 440 kHz, 420 - 900 kHz und 850 - 1750 kHz, Betriebsarten A1 und A3.

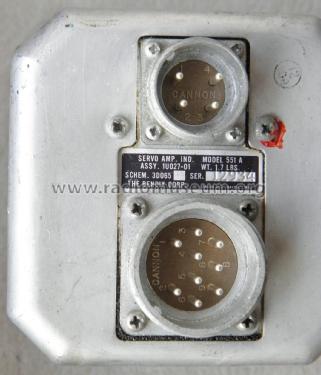

    Zur Gesamtanlage gehören die Antenne (Loop), der Empfänger (Receiver) 201 D und das Anzeigegerät (Servo Amplifier/ADF Indicator) 551 A.



  • Net weight (2.2 lb = 1 kg)
  • 0.750 kg / 1 lb 10.4 oz (1.652 lb)
  • Author
  • Model page created by Siegfried Droese. See "Data change" for further contributors.
