Donec {Донец} radiogramophone

Donec {Донец} ; Berdsk Radio Works (ID = 465973) Radio Donec {Донец} ; Berdsk Radio Works (ID = 465974) Radio
Donec {Донец} ; Berdsk Radio Works (ID = 465975) Radio Donec {Донец} ; Berdsk Radio Works (ID = 1052385) Radio
Donec {Донец} ; Berdsk Radio Works (ID = 1052388) Radio
Use red slider bar for more.
Donec {Донец} ; Berdsk Radio Works (ID = 465973) Radio

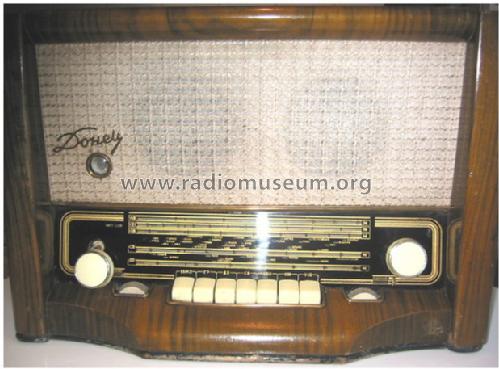

Berdsk Radio Works: Donec {Донец} [Radio] ID = 465973 619x457
Select picture or schematic to display from thumbnails on the right and click for download.
For model Donec {Донец} radiogramophone, Berdsk Radio Works

Country:  Soviet Union
Manufacturer / Brand:  Berdsk Radio Works
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6Н3П 6И1П 6К4П 6Х2П 6Е5С 6Н2П 6П14П
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker 2 Loudspeakers
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Donec {Донец} [radiogramophone] - Berdsk Radio Works
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 520 x 340 x 368 mm / 20.5 x 13.4 x 14.5 inch
Notes Record player 33 and 78 rpm, piezoelectric tone-arm. From 1955 producibled in Charkov Radio Works too.
Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)
Price in first year of sale 104.00 RUR
Mentioned in E.A. Levitin "Radio sets" Moscow 1960
Literature/Schematics (1) -- Schematic

Model page created by Zenonas Langaitis. See "Data change" for further contributors.



All listed radios etc. from Berdsk Radio Works
Here you find 41 models, 37 with images and 33 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
