Wizard ; Berec Radio, London (ID = 1008836) Radio
Berec Radio, London: Wizard [Radio] ID = 1008836 683x886
Select picture or schematic to display from thumbnails on the right and click for download.
For model Wizard, Berec Radio, London

Country:  Great Britain (UK)
Manufacturer / Brand:  Berec Radio, London
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK96 DF96 DAF96 DL96
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 1.5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: Wizard - Berec Radio, London
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 9.5 x 3.6 x 9 inch / 241 x 91 x 229 mm

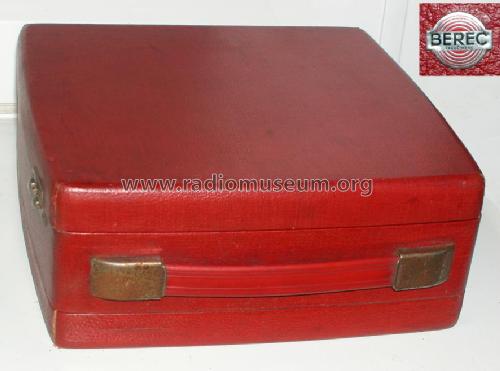

Notes Attache case radio. Same chassis as Ever Ready model Sky Baronet. Price £12.1s.6d.
Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Source of data -- Schematic
Circuit diagram reference Radio and TV Servicing books (R&TVS) book
Mentioned in Attache Radios. By Mark Johnson.

Model page created by Keith Staines. See "Data change" for further contributors.
