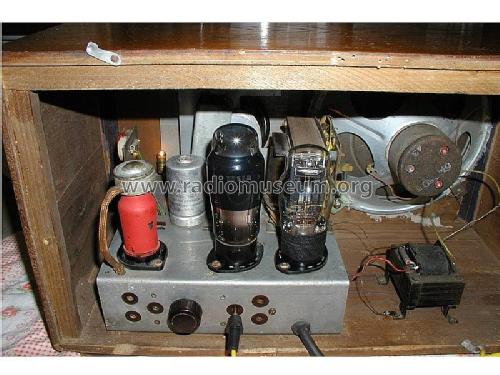

Special 47; Bezdra - Saffek a (ID = 271546) Radio Special 47; Bezdra - Saffek a (ID = 271545) Radio
Special 47; Bezdra - Saffek a (ID = 2416647) Radio Special 47; Bezdra - Saffek a (ID = 2416648) Radio
Special 47; Bezdra - Saffek a (ID = 2416649) Radio Special 47; Bezdra - Saffek a (ID = 2416650) Radio
Special 47; Bezdra - Saffek a (ID = 2416651) Radio Special 47; Bezdra - Saffek a (ID = 2416652) Radio
Use red slider bar for more.
Special 47; Bezdra - Saffek a (ID = 2641421) Radio
Bezdra - Saffek a: Special 47 [Radio] ID = 2641421 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Special 47 var 2, Bezdra - Saffek a Spol; Praha

Country:  Czechoslovakia
Manufacturer / Brand:  Bezdra - Saffek a Spol; Praha
Year: 1946–1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: EF6 EL11 AZ11
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out 2.8 W (unknown quality)
from Radiomuseum.org Model: Special 47 [var 2] - Bezdra - Saffek a Spol; Praha
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 380 x 260 x 220 mm / 15 x 10.2 x 8.7 inch
Notes Alternative tube set EF6, EL3 AZ1 -> var 1. Same circuit diagram.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Literature/Schematics (1) Ceskoslovenske Rozhlasove a Televizni Prijimace I a II

Model page created by Georg Richter. See "Data change" for further contributors.
