Celerina E6300 symmetrische Form

Celerina E6300; Biennophone; Marke (ID = 1161237) Radio
Celerina E6300; Biennophone; Marke (ID = 1028864) Radio Celerina E6300; Biennophone; Marke (ID = 1181772) Radio

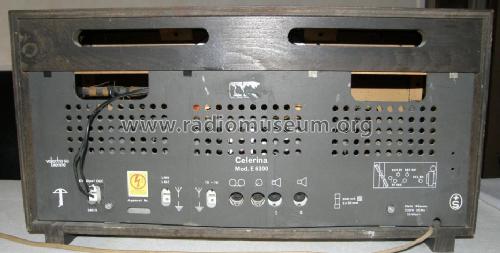

Celerina E6300; Biennophone; Marke (ID = 1181774) Radio Celerina E6300; Biennophone; Marke (ID = 1181775) Radio
Use red slider bar for more.
Celerina E6300; Biennophone; Marke (ID = 1028864) Radio
Biennophone; Marke: Celerina E6300 [Radio] ID = 1028864 933x645
Select picture or schematic to display from thumbnails on the right and click for download.
For model Celerina E6300 symmetrische Form, Biennophone; (Marke):
Q: Prospekt

Country:  Switzerland
Manufacturer / Brand:  Biennophone; (Marke)
alternative name

Sport AG Biel || Velectra AG
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC84 ECF80 EF184 EF184 EM84 EF184 ECH81 EBF89 ECL86
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Wired Wireless Receiver (RF!)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Celerina E6300 [symmetrische Form] - Biennophone; Marke
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 290 x 250 mm / 22 x 11.4 x 9.8 inch
Notes

 Drucktasten, Klangregler, drehbare Ferritantenne, eingeb. Dipol, HF-TR Skala und Eingang, schaltbarer LS-Ausgang, Plattenfach, Füsse abnehmbar. Ovallautsprecher 250 x 160 mm. Getrennte Empfangsteile für AM und FM. FM/UKW 88 bis 104 MHz, Cascode-Vorstufe.

Model page created by David Pfister. See "Data change" for further contributors.
