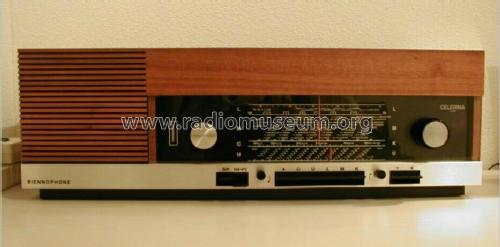

For model Celerina E6400, Biennophone; (Marke)

Country:  Switzerland
Manufacturer / Brand:  Biennophone; (Marke)
alternative name

Sport AG Biel || Velectra AG
Year: 1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC84 ECF80 EF184 EF184 EM87 EF184 ECH81 EBF89 ECL86
Semiconductors (the count is only for transistors) B250C100 1N542 1N542
Main principle Super-Heterodyne (Super in general); 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Wired Wireless Receiver (RF!)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Celerina E6400 - Biennophone; Marke
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 700 x 225 x 240 mm / 27.6 x 8.9 x 9.4 inch
Notes

Drehbare Ferritantenne.
DIN-Buchsen für LS-extern (schaltbar), 2.LS (parallel),
Tonband, Plattenspieler, HF-TR, AM, FM.
Getrennte Empfangsteile für AM und FM.

Siehe auch Biennophone Truhe Celerina 6400.

Price in first year of sale 545.00 Sfr
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
