Montana 9107
 |
 |
 |
 |
 |
 |
 |
Use red slider bar for more.
Biennophone; Marke: Montana 9107 [Radio] ID = 1159653 746x446
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Sport AG Biel || Velectra AG | ||||
|---|---|---|---|---|---|
| Year: 1991 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. | ||||
| schematic requested | |||||
| Main principle | TRF with diode detector |
|---|---|
| Wave bands | Long Wave and/or Very Low Frequency (VLF). |
| Details | Wired Wireless Receiver (RF!) |
| Power type and voltage | Alternating Current supply (AC) / 220 Volt |

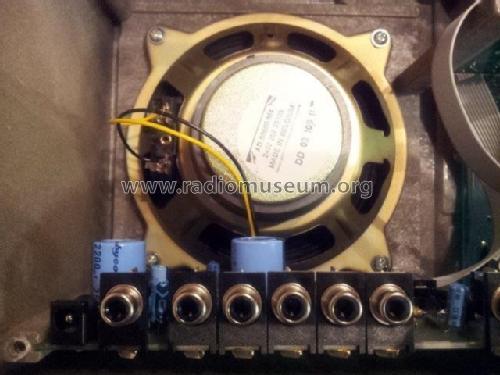

| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch |
| Power out | |
| from Radiomuseum.org | Model: Montana 9107 - Biennophone; Marke |
| Material | Modern plastics (no Bakelite or Catalin) |
| Shape | Tablemodel with Push Buttons. |
| Dimensions (WHD) | 330 x 155 x 105 mm / 13 x 6.1 x 4.1 inch |
| Notes | 6 Fixtasten für den Telefonrundspruchempfang. Als Option auch mit UKW-Tuner mit 6 Fixsendern erhältlich, zur Sendereinstellung 6 Drehpotentiometer (Preomat) auf der Rückseite. Hersteller Felix SA, Nyon. |
| Source of data | - - Data from my own collection |
Model page created by Markus Meier. See "Data change" for further contributors.
