Operatic 37P

Operatic 37P; Bland Radio Ltd; (ID = 1837769) Radio Operatic 37P; Bland Radio Ltd; (ID = 1837770) Radio
Use red slider bar for more.
Operatic 37P; Bland Radio Ltd; (ID = 1837769) Radio

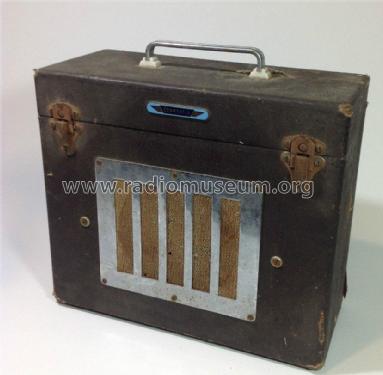

Bland Radio Ltd;: Operatic 37P [Radio] ID = 1837769 829x811
Select picture or schematic to display from thumbnails on the right and click for download.
For model Operatic 37P, Bland Radio Ltd; Adelaide:
Ebay #321767464649 Seller:moforetro

Country:  Australia
Manufacturer / Brand:  Bland Radio Ltd; Adelaide
Brand

Operatic
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1T4 1R5 1T4 1S5 3S4
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1.5 & 2 x 45 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: Operatic 37P - Bland Radio Ltd; Adelaide
Shape Portable set > 8 inch (also usable without mains)
Notes

This model has provision to use external batteries.

Literature/Schematics (1) Australian Official Radio Service Manual Vol. 8 P270.

Model page created by Stuart Irwin. See "Data change" for further contributors.



All listed radios etc. from Bland Radio Ltd; Adelaide
Here you find 83 models, 25 with images and 6 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
