2GW146E; Blaupunkt Ideal, (ID = 27834) Radio
Blaupunkt Ideal,: 2GW146E [Radio] ID = 27834 535x510
Select picture or schematic to display from thumbnails on the right and click for download.
For model 2GW146E, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RV12P2000 RV12P2000 VY2
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 2GW146E - Blaupunkt Ideal, Berlin,
Material Wooden case

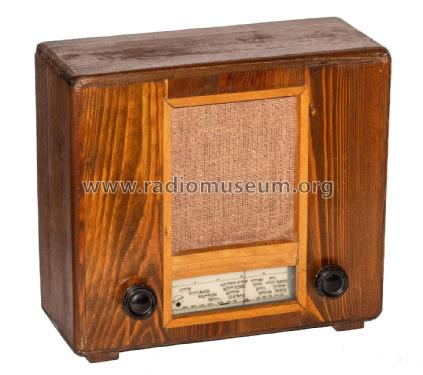

Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes L-Abstimmung
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb

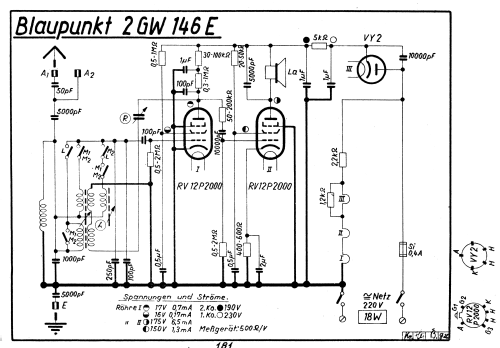

Circuit diagram reference Lange + Schenk Heft 29 von 1947
