Export Super 3598 ab Q 180001; Blaupunkt Ideal, (ID = 796828) Car Radio
Blaupunkt Ideal,: Export Super 3598 ab Q 180001 [Car Radio] ID = 796828 933x406
Select picture or schematic to display from thumbnails on the right and click for download.

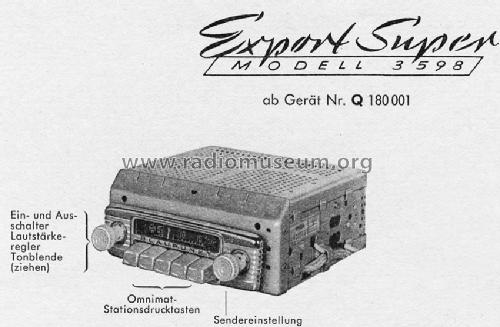

For model Export Super 3598 ab Q 180001, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1959/1960 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 4: EF89 ECH81 EBF89 ECF83
Semiconductors (the count is only for transistors) 3: TF80/30 TF80/30 TF77
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Export Super 3598 ab Q 180001 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 183 x 76 x 168 mm / 7.2 x 3 x 6.6 inch
Notes Importer: Robert Bosch Corp.
Net weight (2.2 lb = 1 kg) 3.4 kg / 7 lb 7.8 oz (7.489 lb)

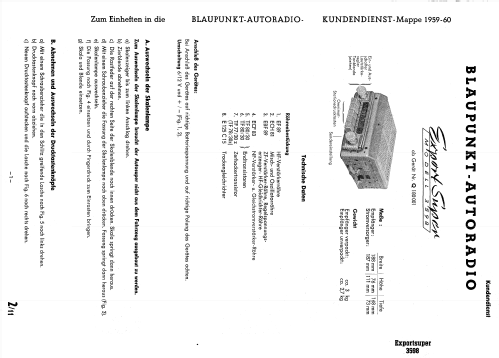

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 506 folder 7 date 11-60)

Model page created by Peter Hoddow. See "Data change" for further contributors.
