3W4; Blaupunkt Ideal, (ID = 3285) Radio

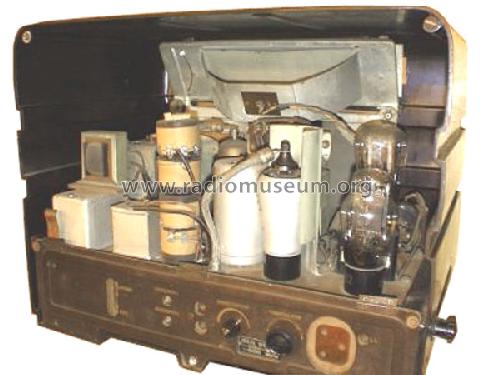

Blaupunkt Ideal,: 3W4 [Radio] ID = 3285 528x450
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3W4, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ACH1 RENS1284 RES964 RGN1064
Main principle Super-Heterodyne (Super in general); ZF/IF 491 kHz; Reaction
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: 3W4 - Blaupunkt Ideal, Berlin,
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 455 x 380 x 295 mm / 17.9 x 15 x 11.6 inch
Notes Pultskala
Price in first year of sale 248.00 RM
Collectors' prices
Source of data Radio-Katalog Fricke 1934/35 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Radio-Katalog, Mix & Genest Hansawerke, 1935
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
