- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1929/1930
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 468
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
System zerstört: Zink!
Blaupunkt LS 59 K
Blaupunkt Prospekt ca. 1930
Der Rundfunk-Händler August 1928
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Magnetic loudspeaker (reed) generic.
- Material
- Bakelite case
- from Radiomuseum.org

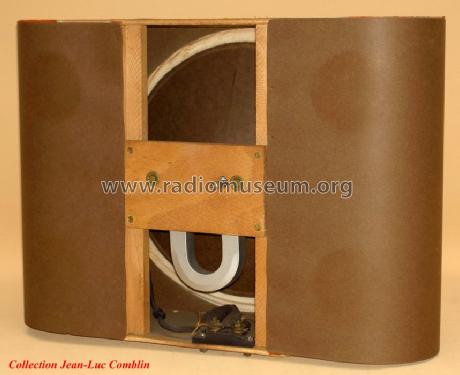

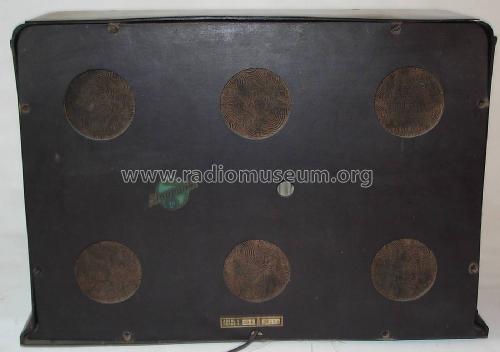

- Model: 59P - Blaupunkt Ideal, Berlin,
- Dimensions (WHD)
- 440 x 300 x 150 mm / 17.3 x 11.8 x 5.9 inch
- Notes
-
Kabinett-Grossflächen-LS in eckigem Gehäuse
Modell 59P mit System 66P
Modell 59K mit System 66K.
- Price in first year of sale
- 54.00 RM
- Source of data
- Arlt's grosser Radiokatalog 1930 / Radiokatalog Band 1, Ernst Erb
- Literature/Schematics (2)
- Le Guide du Collectionneur TSF Biraud/Foster, Vol. II (page 440 (called Type 59 with system 66K))
- Picture reference
- Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
