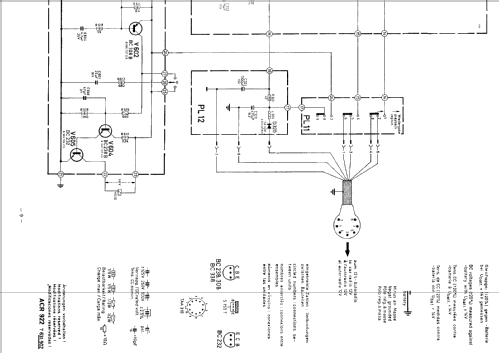

Select picture or schematic to display from thumbnails on the right and click for download.
For model ACR922 7.631.902, Blaupunkt (Ideal), Berlin, später Hildesheim:
Q Blaupunkt, Service-Unterlagen

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1971/1972 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 6: BC338 BC308 BC238 BC232 TAA310
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: ACR922 7.631.902 - Blaupunkt Ideal, Berlin,
Material Metal case
Dimensions (WHD) 216 x 65 x 200 mm / 8.5 x 2.6 x 7.9 inch
Notes Halbleiter teilweise mehrfach vorhanden.
Das Gerät arbeitet in Verbindung mit allen Stereo-Autoradios mit nach DIN 45 329 beschalteter TB-Buchse.
External source of data Erb
Source of data Handbuch VDRG 1972/1973
Literature/Schematics (1) -- Original-techn. papers.
