AL6747

AL6747; Blaupunkt Ideal, (ID = 1942086) Speaker-P
Use red slider bar for more.
AL6747; Blaupunkt Ideal, (ID = 1942086) Speaker-P

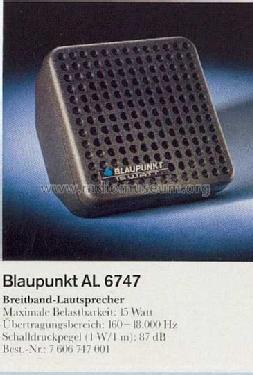

Blaupunkt Ideal,: AL6747 [Speaker-P] ID = 1942086 366x542
Select picture or schematic to display from thumbnails on the right and click for download.
For model AL6747, Blaupunkt (Ideal), Berlin, später Hildesheim:
aus Blaupunkt Heft1986

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1986 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11.5 cm = 4.5 inch
Power out
from Radiomuseum.org Model: AL6747 - Blaupunkt Ideal, Berlin,
Dimensions (WHD) 115 x 115 x 63 mm / 4.5 x 4.5 x 2.5 inch
Notes

Breitband-Lautsprecher (Aufbau), Maximale Belastbarkeit: 15 Watt.

Mentioned in -- Original prospect or advert

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
