Amplifier BQX 300 7 607 785 510; Blaupunkt Ideal, (ID = 2471088) Ampl/Mixer
Blaupunkt Ideal,: Amplifier BQX 300 7 607 785 510 [Ampl/Mixer] ID = 2471088 1200x493
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplifier BQX 300 7 607 785 510, Blaupunkt (Ideal), Berlin, später Hildesheim:

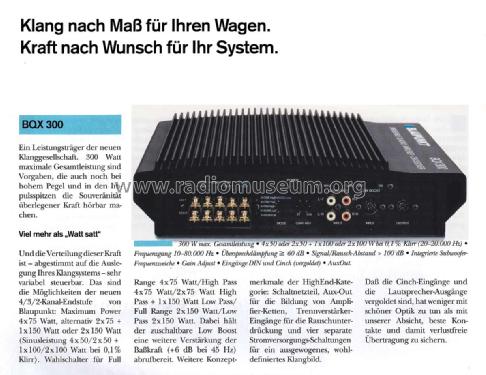

Blaupunkt Prospekt 1992

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1992/1993 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 45:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 300 W (max.)
from Radiomuseum.org Model: Amplifier BQX 300 7 607 785 510 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 232 x 75 x 305 mm / 9.1 x 3 x 12 inch
Notes

Blaupunkt BQX 300 ist ein NF-Endverstärker für Automobil-Anwendung.

Frequenzbereich: 10 - 80000 Hz
Sinusleistung: 4 x 50 / 2 x 50 + 1x 160 / 2x100 Watt
Lautsprecherausgänge: 4 + 1
Besonderheit: Subwooferweiche





Mentioned in -- Original prospect or advert (Blaupunkt Prospekt 1992 und 1993)

Model page created by Richard Winter. See "Data change" for further contributors.
