Baden-Baden Mono 7.635.220

Baden-Baden Mono 7.635.220; Blaupunkt Ideal, (ID = 573957) Car Radio

Baden-Baden Mono 7.635.220; Blaupunkt Ideal, (ID = 573958) Car Radio

Baden-Baden Mono 7.635.220; Blaupunkt Ideal, (ID = 573959) Car Radio

Baden-Baden Mono 7.635.220; Blaupunkt Ideal, (ID = 573960) Car Radio

Baden-Baden Mono 7.635.220; Blaupunkt Ideal, (ID = 573961) Car Radio

Baden-Baden Mono 7.635.220; Blaupunkt Ideal, (ID = 573962) Car Radio

Baden-Baden Mono 7.635.220; Blaupunkt Ideal, (ID = 573963) Car Radio

Baden-Baden Mono 7.635.220; Blaupunkt Ideal, (ID = 573965) Car Radio

Baden-Baden Mono 7.635.220; Blaupunkt Ideal, (ID = 573966) Car Radio

Baden-Baden Mono 7.635.220; Blaupunkt Ideal, (ID = 573969) Car Radio
Baden-Baden Mono 7.635.220; Blaupunkt Ideal, (ID = 573980) Car Radio Baden-Baden Mono 7.635.220; Blaupunkt Ideal, (ID = 1570555) Car Radio
Baden-Baden Mono 7.635.220; Blaupunkt Ideal, (ID = 1570556) Car Radio Baden-Baden Mono 7.635.220; Blaupunkt Ideal, (ID = 1570557) Car Radio
Use red slider bar for more.
Baden-Baden Mono 7.635.220; Blaupunkt Ideal, (ID = 573980) Car Radio
Blaupunkt Ideal,: Baden-Baden Mono 7.635.220 [Car Radio] ID = 573980 648x373
Select picture or schematic to display from thumbnails on the right and click for download.
For model Baden-Baden Mono 7.635.220, Blaupunkt (Ideal), Berlin, später Hildesheim:

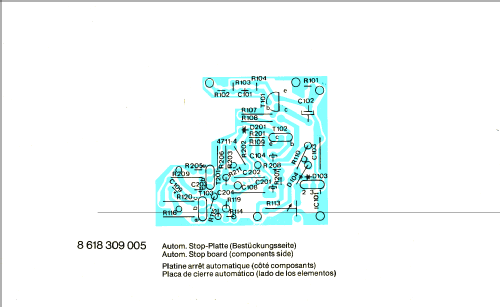

Bild aus Blaupunkt Service Unterlagen

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1979 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 13:
Main principle Super-Heterodyne (Super in general); ZF/IF 455 or 465 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Baden-Baden Mono 7.635.220 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 182 x 57 x 152 mm / 7.2 x 2.2 x 6 inch
Notes 1 IC; Gerät gibt es mit und ohne autom. Stop
Mentioned in Original Blaupunkt Service Unterlagen

Model page created by Josef Pilz. See "Data change" for further contributors.
