Bamberg CR 7.634.932 ab F 5350001

Blaupunkt (Ideal), Berlin, später Hildesheim

  • Year
  • 1974
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 148081
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

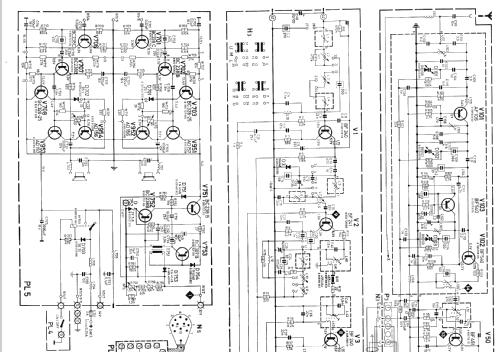

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 39
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Bamberg CR 7.634.932 ab F 5350001 - Blaupunkt Ideal, Berlin,
  • Shape
  • Chassis only or for «building in»
  • Notes
  • 1 IC; AM: 7 Kreise davon 1 Keramikfilter 3-Kreis-Variometerabstimmung, FM: 3-Kreis-Varicapabstimmung
  • Mentioned in
  • Original Blaupunkt Service Unterlagen
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Josef Pilz. See "Data change" for further contributors.
