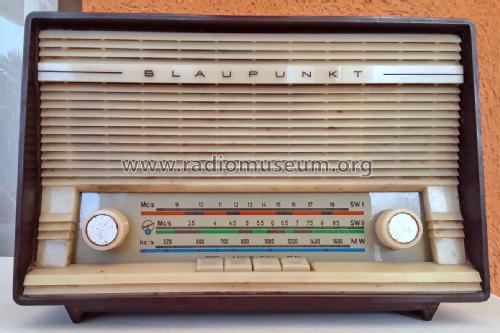

Bari I 21620

Bari I 21620; Blaupunkt Ideal, (ID = 86118) Radio

Bari I 21620; Blaupunkt Ideal, (ID = 86119) Radio

Bari I 21620; Blaupunkt Ideal, (ID = 86120) Radio
Bari I 21620; Blaupunkt Ideal, (ID = 280239) Radio Bari I 21620; Blaupunkt Ideal, (ID = 280240) Radio
Bari I 21620; Blaupunkt Ideal, (ID = 280241) Radio Bari I 21620; Blaupunkt Ideal, (ID = 280242) Radio
Bari I 21620; Blaupunkt Ideal, (ID = 280243) Radio Bari I 21620; Blaupunkt Ideal, (ID = 699965) Radio
Bari I 21620; Blaupunkt Ideal, (ID = 699966) Radio Bari I 21620; Blaupunkt Ideal, (ID = 1357996) Radio
Use red slider bar for more.
Bari I 21620; Blaupunkt Ideal, (ID = 280239) Radio
Blaupunkt Ideal,: Bari I 21620 [Radio] ID = 280239 933x618
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bari I 21620, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH81 EBF89 ECL82 EZ80
schematic requested
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-200 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Bari I 21620 - Blaupunkt Ideal, Berlin,
Material Bakelite case
Dimensions (WHD) 314 x 210 x 190 mm / 12.4 x 8.3 x 7.5 inch
Net weight (2.2 lb = 1 kg) 4.9 kg / 10 lb 12.7 oz (10.793 lb)
Collectors' prices

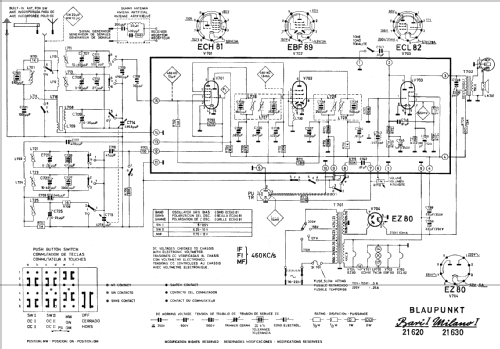

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
