• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 117883

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH81 EBF89 ECL82 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; Export model

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127;155; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Bakelite case

• from Radiomuseum.org

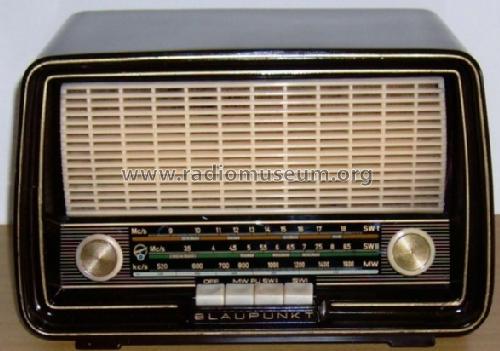

• Model: Bari I de luxe 2660 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 318 x 200 x 185 mm / 12.5 x 7.9 x 7.3 inch

• Notes

• Dial lamp: 7V/0,3A

  Exportgerät, Wellenbereiche:

  KW1 8,7 - 18,2 MHz
  KW2 3,2 - 8,7 MHz
  MW 520 - 1620

  Tropenbeständig.

• Net weight (2.2 lb = 1 kg)
• 4.4 kg / 9 lb 11.1 oz (9.692 lb)

• Source of data
• -- Original-techn. papers.

• Mentioned in
• - - Manufacturers Literature (Blaupunkt Technische Hausmitteilungen Mai 1959)

• Author
• Model page created by Antonio Antunes. See "Data change" for further contributors.
