Bari IV de Luxe (4) 20623

Bari IV de Luxe 20623; Blaupunkt Ideal, (ID = 2357823) Radio Bari IV de Luxe 20623; Blaupunkt Ideal, (ID = 2357824) Radio

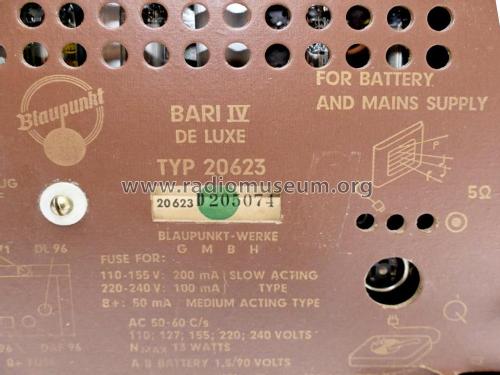

Bari IV de Luxe 20623; Blaupunkt Ideal, (ID = 2255746) Radio
Use red slider bar for more.
Bari IV de Luxe 20623; Blaupunkt Ideal, (ID = 2357823) Radio
Blaupunkt Ideal,: Bari IV de Luxe 20623 [Radio] ID = 2357823 1400x907
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bari IV de Luxe (4) 20623, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: DK92 DF96 DF96 DAF96 DM71 DL96
schematic requested
Main principle Super-Heterodyne (Super in general); Export model
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / 110; 127; 155; 220; 240 / 1,5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Bari IV de Luxe 20623 - Blaupunkt Ideal, Berlin,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Notes

Netz- und Batteriestecker.

Wellenbereiche:
SW1 8,5...18 MHz
SW2 3,2...8.8 MHz
MW 520...1650 kHz

Model page created by Richard Winter. See "Data change" for further contributors.
