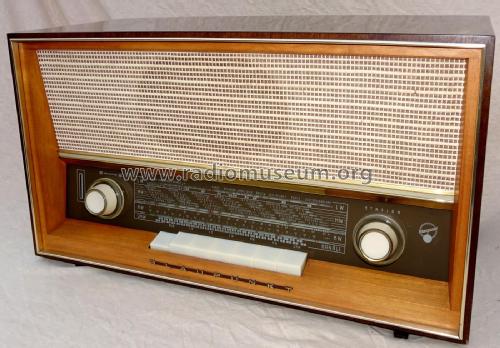

Blaupunkt Verona U 23200 ab 620001
Blaupunkt Ideal,: Blaupunkt Verona U 23200 [Radio] ID = 2198323 1400x977

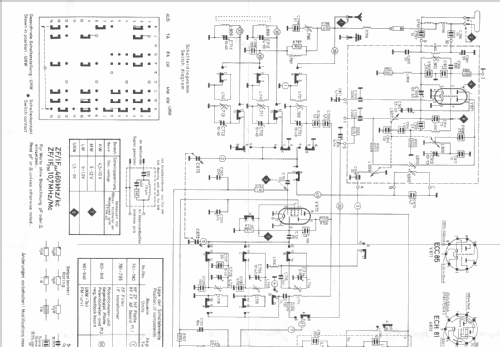

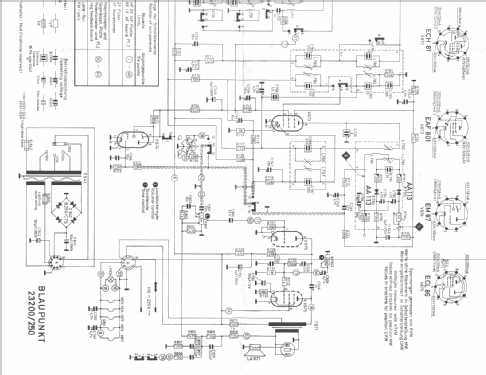

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934) | ||||
|---|---|---|---|---|---|
Brand |
Rotstern | ||||
| Year: 1963–1965 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: ECC85 ECH81 EAF801 ECL86 EM87 |
| Main principle | Superheterodyne (common); ZF/IF 460/10700 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) 10 FM circuit(s) |
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110, 127, 155, 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | 4 W (unknown quality) |
| from Radiomuseum.org | Model: Blaupunkt Verona U 23200 [ab 620001] - Blaupunkt Ideal, Berlin, |
| Material | Wooden case |
| Shape | Tablemodel with Push Buttons. |
| Dimensions (WHD) | 449 x 259 x 206 mm / 17.7 x 10.2 x 8.1 inch |
| Notes | 2 Dioden 2xAA113. Please fill in only 23200 OR Verona in the simple search without the maker (Blaupunkt here). Here we have included the maker Blaupunkt just to be abel to tell you this. Normally we write Verona 23200 or 23 200. See also the blue info-button. |
| Net weight (2.2 lb = 1 kg) | 6.9 kg / 15 lb 3.2 oz (15.198 lb) |
| Price in first year of sale | 366.00 DM |
| External source of data | Erb |
| Source of data | Handbuch VDRG 1963/1964 |
All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
Here you find 3228 models, 2899 with images and 2211 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
Collection of a member from CH
