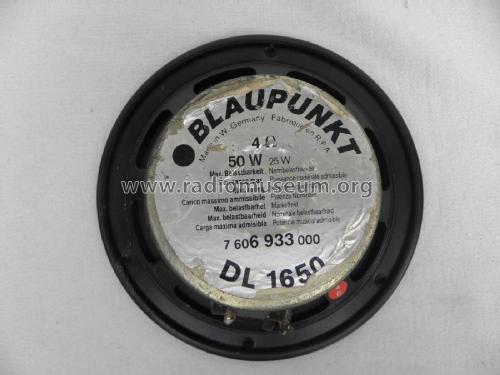

Blue Magic (7.606.933.000) DL 1650
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1985 ?
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 277753
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Abdeckung
Innenseite der Abdeckung
aus Blaupunkt Heft 1986
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Power out
- 50 W (max.)
- Material
- Various materials
- from Radiomuseum.org
- Model: Blue Magic DL 1650 - Blaupunkt Ideal, Berlin,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 160 x 60 x 160 mm / 6.3 x 2.4 x 6.3 inch
- Notes
-
Akustisches 2-Wege-System, wasserresistent. Lautsprecher mit Doppel-Konus-Membrane.
Übertragungsbereich: 45 - 20.000 Hz
Belastbarkeit max. 50 Watt an 4Ω
Pegel: 93dB
- Net weight (2.2 lb = 1 kg)
- 0.880 kg / 1 lb 15 oz (1.938 lb)
- Mentioned in
- -- Original prospect or advert (Blaupunkt-Heft 1986)
- Literature/Schematics (1)
- Blaupunkt Autoradio/Autohifi 85 (Spanish)
- Author
- Model page created by Karlheinz Fischer. See "Data change" for further contributors.
