Ludwigshafen Arimat 7.637.325.210; Blaupunkt Ideal, (ID = 2410380) Car Radio

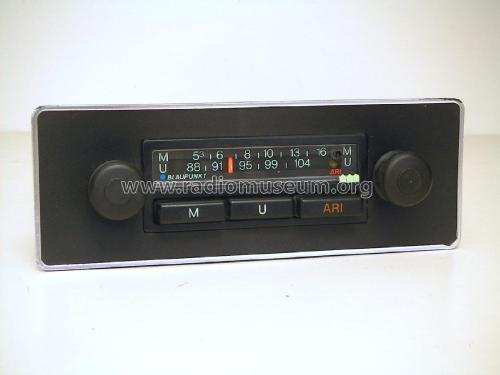

Blaupunkt Ideal,: Ludwigshafen Arimat 7.637.325.210 [Car Radio] ID = 2410380 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ludwigshafen Arimat 7.637.325.210, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1979 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 24: BF254 BF255 BF324 BF450 BF451 TBA120 BC238 BC238 BC239 BC239 BC308 BC308 BC309 BC548 BC558 BD329 BD330
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Ludwigshafen Arimat 7.637.325.210 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 175 x 45 x 125 mm / 6.9 x 1.8 x 4.9 inch
Notes
  • Autoradio UKW (mono)
  • ARI-Funktion
  • 24 Transistoren
  • 14 Dioden
  • 1 Kapazitätsdiode
  • 1 LED (gelb)
  • 1 Z-Diode (9.1V)
  • 1 IC TBA120S
  • Minus an Masse
  • UKW 87,5-104 MHz - ZF 10,7Mhz
  • 520-1605 kHz - ZF 455kHz
  • Hergestellt in Brasilien
Source of data -- Collector info (Sammler)

Model page created by Klemens Rhode. See "Data change" for further contributors.
