Bremen (S) 7.639.100 ab 820001

Bremen 7.639.100 ab 820001; Blaupunkt Ideal, (ID = 198734) Car Radio

Bremen 7.639.100 ab 820001; Blaupunkt Ideal, (ID = 198735) Car Radio

Bremen 7.639.100 ab 820001; Blaupunkt Ideal, (ID = 198736) Car Radio

Bremen 7.639.100 ab 820001; Blaupunkt Ideal, (ID = 198737) Car Radio

Bremen 7.639.100 ab 820001; Blaupunkt Ideal, (ID = 198738) Car Radio

Bremen 7.639.100 ab 820001; Blaupunkt Ideal, (ID = 198739) Car Radio

Bremen 7.639.100 ab 820001; Blaupunkt Ideal, (ID = 198740) Car Radio
Bremen 7.639.100 ab 820001; Blaupunkt Ideal, (ID = 287375) Car Radio Bremen 7.639.100 ab 820001; Blaupunkt Ideal, (ID = 856689) Car Radio
Bremen 7.639.100 ab 820001; Blaupunkt Ideal, (ID = 856693) Car Radio Bremen 7.639.100 ab 820001; Blaupunkt Ideal, (ID = 856694) Car Radio
Bremen 7.639.100 ab 820001; Blaupunkt Ideal, (ID = 856695) Car Radio Bremen 7.639.100 ab 820001; Blaupunkt Ideal, (ID = 1559204) Car Radio
Use red slider bar for more.
Bremen 7.639.100 ab 820001; Blaupunkt Ideal, (ID = 287375) Car Radio

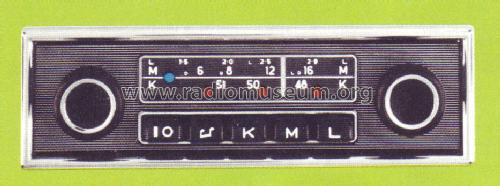

Blaupunkt Ideal,: Bremen 7.639.100 ab 820001 [Car Radio] ID = 287375 933x348

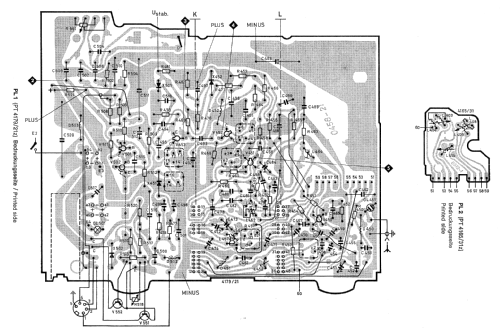

Select picture or schematic to display from thumbnails on the right and click for download.
For model Bremen (S) 7.639.100 ab 820001, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1969/1970 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 8: BF184 BF184 BC108 BC108 BC108 AC126 AD161 AD162 AA119 ZE1,5 ZG1
Main principle Superheterodyne (common); ZF/IF 460 or 452 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Bremen 7.639.100 ab 820001 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 178 x 50 x 147 mm / 7 x 2 x 5.8 inch
Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)
Source of data Handbuch VDRG 1969/1970
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Richard Winter. See "Data change" for further contributors.
