• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1973 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82406

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

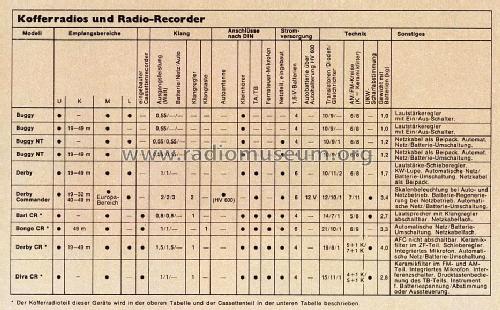

• Model: Buggy UMK 7.653.360 - Blaupunkt Ideal, Berlin,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 248 x 138 x 68 mm / 9.8 x 5.4 x 2.7 inch

• Notes
• Transistoren: 2SC1359, 5x 2SC829, 2SB171, 2SB175, 2x 2SB324, Dioden: 12.

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
