• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1970/1971

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 116739

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

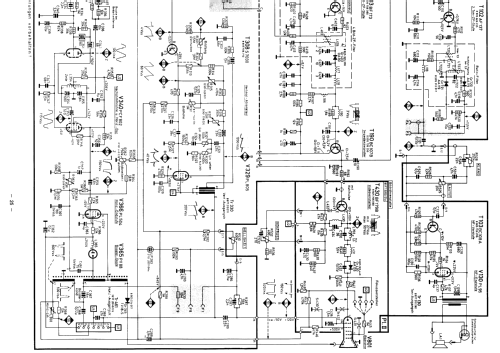

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• A61-120W

• Number of Transistors
• 17

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Caracas 7.670.700 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 700 x 490 x 395 mm / 27.6 x 19.3 x 15.6 inch

• Notes
• 1 IC. VHF/UHF-Allbereich-Drucktasten-Tuner.

• Net weight (2.2 lb = 1 kg)
• 24 kg / 52 lb 13.8 oz (52.863 lb)

• Source of data
• Handbuch VDRG 1970/1971

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
