Coburg-Stereo CR Super-Arimat 7.638.825.010 /110; Blaupunkt Ideal, (ID = 2382474) Car Radio
Blaupunkt Ideal,: Coburg-Stereo CR Super-Arimat 7.638.825.010 /110 [Car Radio] ID = 2382474 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Coburg-Stereo CR Super-Arimat 7.638.825.010 /110, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1978 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 21:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 8 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Coburg-Stereo CR Super-Arimat 7.638.825.010 /110 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»

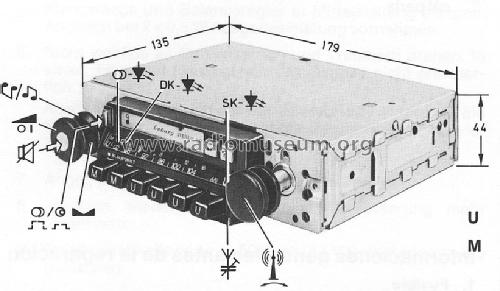

Dimensions (WHD) 179 x 44 x 135 mm / 7 x 1.7 x 5.3 inch
Notes 4 IC; und 12 Hybrid
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Mentioned in Original Blaupunkt Service Unterlagen
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
