Colorado 7.669.850

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1969–1971

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 116661

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

• Picture

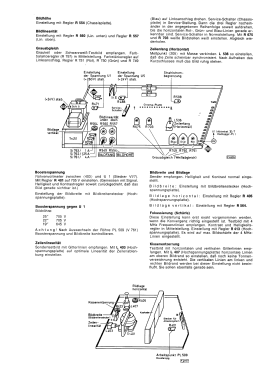

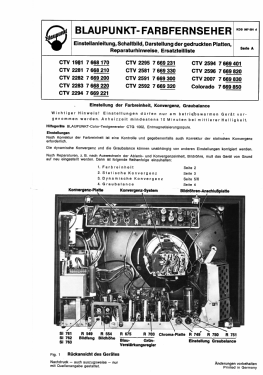

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 5 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Colorado 7.669.850 - Blaupunkt Ideal, Berlin,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1570 x 750 x 495 mm / 61.8 x 29.5 x 19.5 inch

• Notes
• Fernseh-Chassis = 7.669.330 mit 56-cm-Bildröhre;
  Rundfunk-Spezialchassis = 7.629.130;
  Phono-Chassis = PE 2001.

• Net weight (2.2 lb = 1 kg)
• 90 kg / 198 lb 3.8 oz (198.238 lb)

• Price in first year of sale
• 3,295.00 DM

• Source of data
• Handbuch VDRG 1969/1970

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
