• Year
  • 1969/1970
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 116659
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Number of Transistors
  • 37
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org

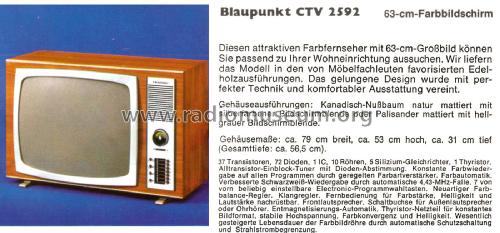

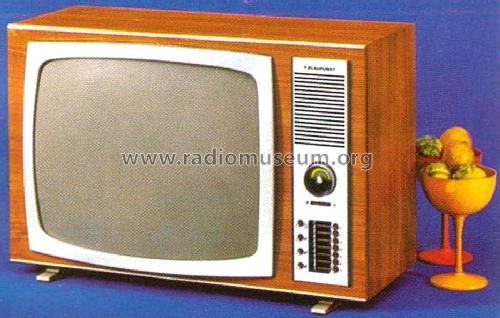

  • Model: CTV2592 7.669.320 - Blaupunkt Ideal, Berlin,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 790 x 530 x 570 mm / 31.1 x 20.9 x 22.4 inch
  • Notes
  • VHF/UHF-Allbereichtuner mit Diodenabstimmung und Preomat

  • Net weight (2.2 lb = 1 kg)
  • 48 kg / 105 lb 11.6 oz (105.727 lb)
  • Price in first year of sale
  • 2,248.00 DM
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
