Derby 22560 Serie T ab 650001

Derby 22560 Serie T; Blaupunkt Ideal, (ID = 72326) Radio

Derby 22560 Serie T; Blaupunkt Ideal, (ID = 72327) Radio

Derby 22560 Serie T; Blaupunkt Ideal, (ID = 72335) Radio

Derby 22560 Serie T; Blaupunkt Ideal, (ID = 72336) Radio

Derby 22560 Serie T; Blaupunkt Ideal, (ID = 72337) Radio

Derby 22560 Serie T; Blaupunkt Ideal, (ID = 72338) Radio

Derby 22560 Serie T; Blaupunkt Ideal, (ID = 72339) Radio

Derby 22560 Serie T; Blaupunkt Ideal, (ID = 72340) Radio

Derby 22560 Serie T; Blaupunkt Ideal, (ID = 72342) Radio

Derby 22560 Serie T; Blaupunkt Ideal, (ID = 72343) Radio
Derby 22560 Serie T; Blaupunkt Ideal, (ID = 2687) Radio Derby 22560 Serie T; Blaupunkt Ideal, (ID = 148228) Radio
Derby 22560 Serie T; Blaupunkt Ideal, (ID = 478739) Radio Derby 22560 Serie T; Blaupunkt Ideal, (ID = 1055386) Radio
Derby 22560 Serie T; Blaupunkt Ideal, (ID = 1095175) Radio Derby 22560 Serie T; Blaupunkt Ideal, (ID = 1095176) Radio
Derby 22560 Serie T; Blaupunkt Ideal, (ID = 1095177) Radio
Use red slider bar for more.
Derby 22560 Serie T; Blaupunkt Ideal, (ID = 2687) Radio
Blaupunkt Ideal,: Derby 22560 Serie T [Radio] ID = 2687 770x577
Select picture or schematic to display from thumbnails on the right and click for download.
For model Derby 22560 Serie T ab 650001, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: OC615 OC615 OC614 AF105 AF105 OC75 OC75 OC75 OC74 OC74
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Derby 22560 Serie T [ab 650001] - Blaupunkt Ideal, Berlin,
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 273 x 198 x 86 mm / 10.7 x 7.8 x 3.4 inch
Notes

Autohaltevorrichtung HV Derby / Nixe 85580.

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 299.00 DM
Source of data Handbuch VDRG 1962/1963 / Radiokatalog Band 1, Ernst Erb

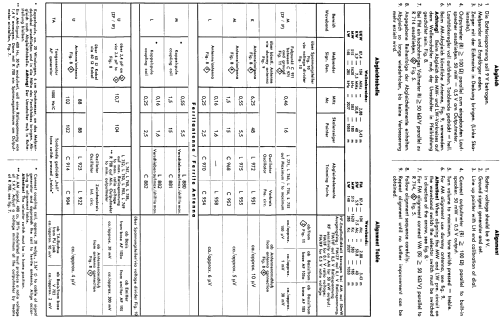

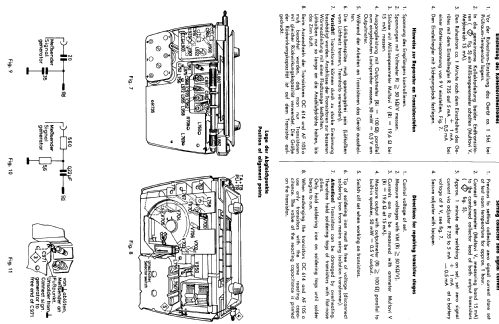

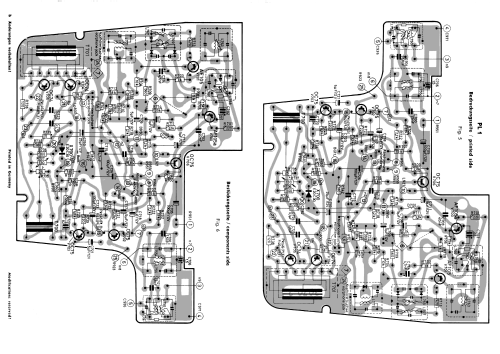

Literature/Schematics (1) -- Original-techn. papers.
