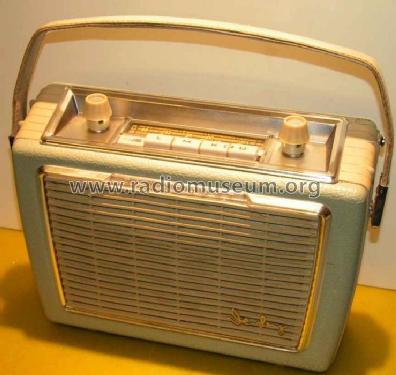

Derby 22560 Serie T ab 667401

Blaupunkt (Ideal), Berlin, später Hildesheim

Data
Forum
Pictures
Collections

  • Year
  • 1962/1963 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 84888
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

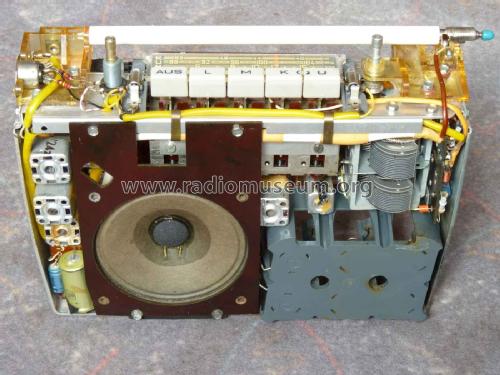

  • Number of Transistors
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 460 or 473 kHz; 3 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)     9 FM circuit(s)
  • Wave bands

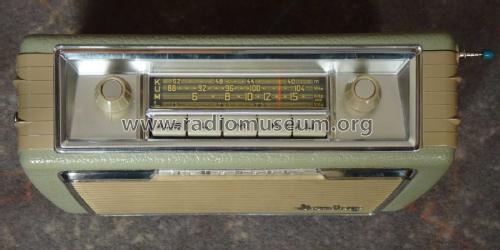

  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Storage and/or dry batteries / 6 × 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Power out
  • 1 W (unknown quality)
  • from Radiomuseum.org
  • Model: Derby 22560 Serie T [ab 667401] - Blaupunkt Ideal, Berlin,

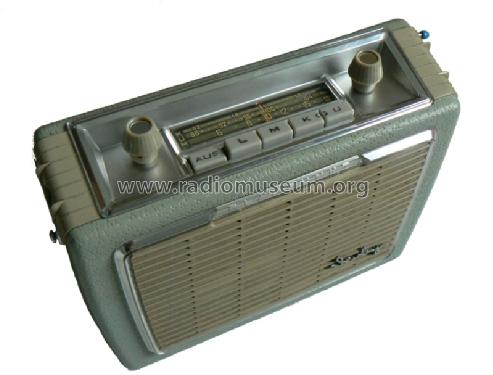

  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 273 x 198 x 86 mm / 10.7 x 7.8 x 3.4 inch
  • Notes

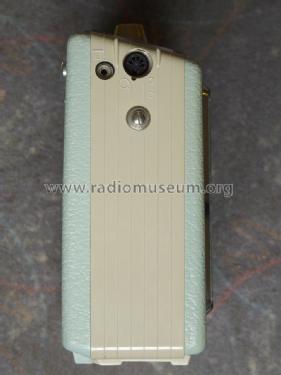

  • Anschlüsse für Tonband und Kopfhörer.
    Mit spezieller Autohalterung HV Derby / Nixe auch Betrieb an 6/9/12 V mit externer Antenne und externem Lautsprecher.

  • Net weight (2.2 lb = 1 kg)
  • 2.8 kg / 6 lb 2.7 oz (6.167 lb)
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Bernd Pötzsch. See "Data change" for further contributors.
