For model Derby US 22570 Serie T ab 750001, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1962/1963 ? Category: Broadcast Receiver - or past WW2 Tuner

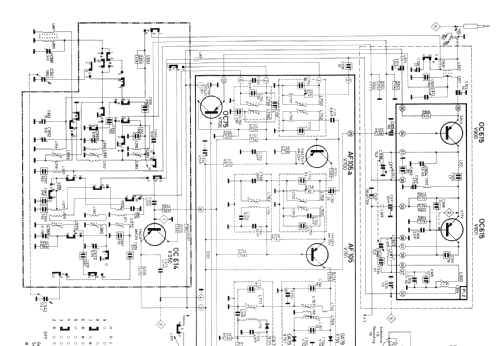

Semiconductors (the count is only for transistors) 10: OC615 OC615 OC614 AF105 AF105 OC75 OC75 OC75 OC74 OC74
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Derby US 22570 Serie T [ab 750001] - Blaupunkt Ideal, Berlin,
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 273 x 198 x 86 mm / 10.7 x 7.8 x 3.4 inch
Notes

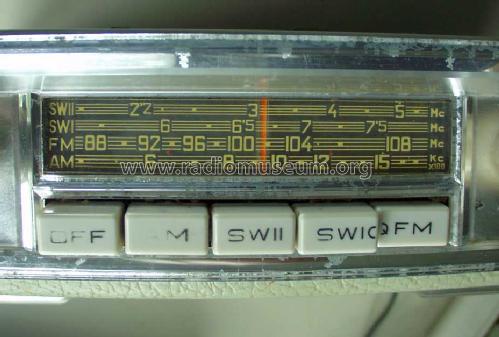

Kurzwelle I 5,9–7,5 MHz, Kurzwelle II 2–5 MHz.

Autohaltevorrichtung HV Derby / Nixe.

Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Collectors' prices

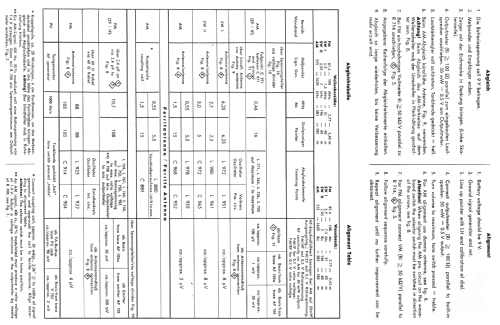

Mentioned in -- Original-techn. papers.

Model page created by Bernd Pötzsch. See "Data change" for further contributors.
