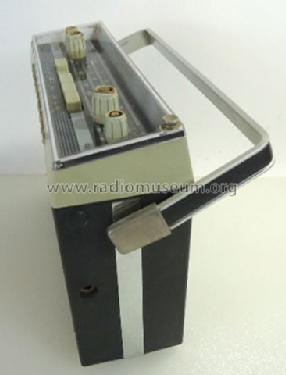

Derby 660 Automatic US 7.656.704; Blaupunkt Ideal, (ID = 1342764) Radio Derby 660 Automatic US 7.656.704; Blaupunkt Ideal, (ID = 1342765) Radio
Derby 660 Automatic US 7.656.704; Blaupunkt Ideal, (ID = 1342768) Radio Derby 660 Automatic US 7.656.704; Blaupunkt Ideal, (ID = 1342772) Radio
Derby 660 Automatic US 7.656.704; Blaupunkt Ideal, (ID = 1342773) Radio Derby 660 Automatic US 7.656.704; Blaupunkt Ideal, (ID = 1951124) Radio
Use red slider bar for more.
Derby 660 Automatic US 7.656.704; Blaupunkt Ideal, (ID = 14059) Radio
Blaupunkt Ideal,: Derby 660 Automatic US 7.656.704 [Radio] ID = 14059 713x501
Select picture or schematic to display from thumbnails on the right and click for download.
For model Derby 660 Automatic US 7.656.704, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1966/1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: AF106 AF135 AF136 AF138 AF137 OC45 AC122 AC122 AC122 AC117 AC117
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Storage and/or dry batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Derby 660 Automatic US 7.656.704 - Blaupunkt Ideal, Berlin,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 195 x 82 mm / 10.6 x 7.7 x 3.2 inch
Notes

Technische Daten wie Derby 660 Automatic 7.656.700, jedoch MKU + Tropenband.
FM-UKW 88...108 MHz.

Betrieb auch über Autohalterung HV560/570.

Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Collectors' prices
Source of data Handbuch VDRG 1966/1967 / Radiokatalog Band 1, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
