Diva 93500 ab U 130001
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1963/1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 72584
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Q: Blaupunkt, Service-Manual '63
Q: Blaupunkt, Produkt-Katalog '63
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 452 or 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Dry Batteries / 6F100: 1 x 9 or 3R12: 2 x 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

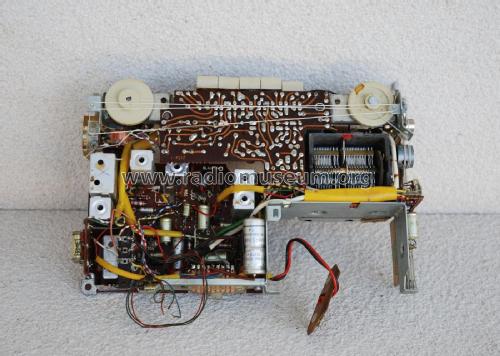

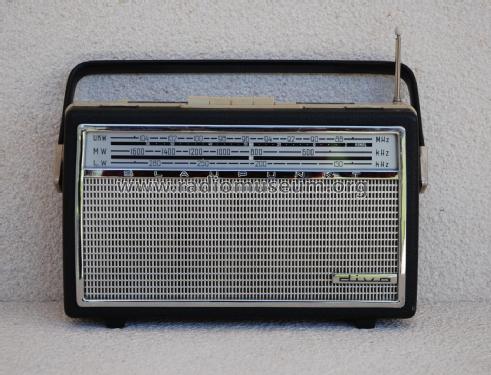

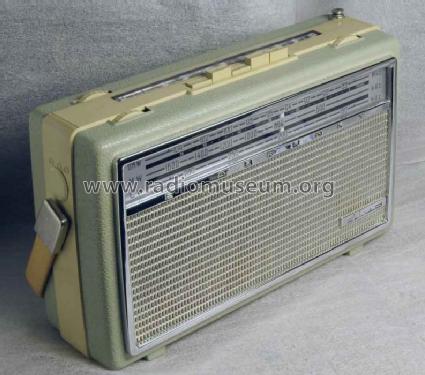

- Model: Diva 93500 [ab U 130001] - Blaupunkt Ideal, Berlin,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 266 x 165 x 80 mm / 10.5 x 6.5 x 3.1 inch
- Notes
-
HF-Vorstufe auch für MW/LW über den UKW-Vorstufentransistor. Ausgang für Kopfhörer.
Über Einbauhaltevorrichtung HV 250 auch 6 und 12 Volt Betrieb mit Polaritätsumschaltung + oder - an Masse des Fahrzeugs möglich.
- Net weight (2.2 lb = 1 kg)
- 2.250 kg / 4 lb 15.3 oz (4.956 lb)
- Mentioned in
- - - Manufacturers Literature (Produkt-Katalog '63)
- Literature/Schematics (1)
- -- Original-techn. papers. (Service-Manual '63)
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
