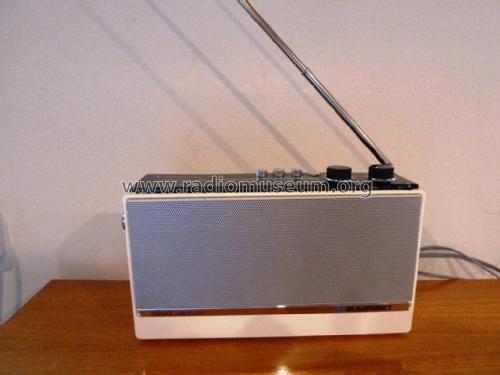

Diva de luxe 7.651.422; Blaupunkt Ideal, (ID = 1088634) Radio
Blaupunkt Ideal,: Diva de luxe 7.651.422 [Radio] ID = 1088634 933x744

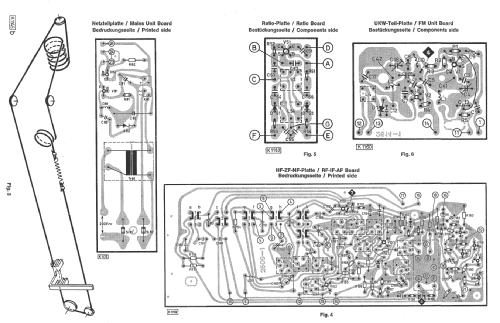

Select picture or schematic to display from thumbnails on the right and click for download.
For model Diva de luxe 7.651.422, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1971/1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.7 W (unknown quality)
from Radiomuseum.org Model: Diva de luxe 7.651.422 - Blaupunkt Ideal, Berlin,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 153 x 66 mm / 10.6 x 6 x 2.6 inch
Notes Automatische Regenerierung der Batterien bei Netzbetrieb.
Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)
External source of data Erb
Source of data Handbuch VDRG 1971/1972
