Diva L 94500

Diva L 94500; Blaupunkt Ideal, (ID = 103828) Radio

Diva L 94500; Blaupunkt Ideal, (ID = 103829) Radio

Diva L 94500; Blaupunkt Ideal, (ID = 103830) Radio

Diva L 94500; Blaupunkt Ideal, (ID = 103832) Radio

Diva L 94500; Blaupunkt Ideal, (ID = 103833) Radio

Diva L 94500; Blaupunkt Ideal, (ID = 103834) Radio

Diva L 94500; Blaupunkt Ideal, (ID = 103835) Radio

Diva L 94500; Blaupunkt Ideal, (ID = 103836) Radio

Diva L 94500; Blaupunkt Ideal, (ID = 103837) Radio

Diva L 94500; Blaupunkt Ideal, (ID = 103838) Radio
Diva L 94500; Blaupunkt Ideal, (ID = 1310011) Radio Diva L 94500; Blaupunkt Ideal, (ID = 20781) Radio
Diva L 94500; Blaupunkt Ideal, (ID = 177045) Radio Diva L 94500; Blaupunkt Ideal, (ID = 105101) Radio
Diva L 94500; Blaupunkt Ideal, (ID = 105102) Radio Diva L 94500; Blaupunkt Ideal, (ID = 129910) Radio
Diva L 94500; Blaupunkt Ideal, (ID = 177046) Radio Diva L 94500; Blaupunkt Ideal, (ID = 714923) Radio
Diva L 94500; Blaupunkt Ideal, (ID = 1002901) Radio Diva L 94500; Blaupunkt Ideal, (ID = 2021729) Radio
Use red slider bar for more.

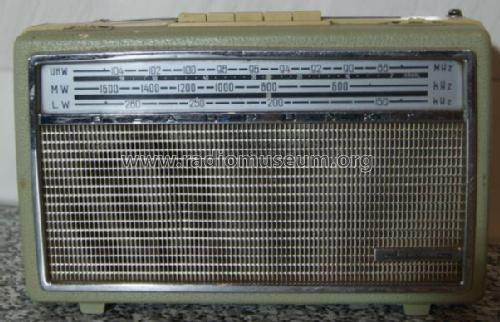

Diva L 94500; Blaupunkt Ideal, (ID = 1310011) Radio
Blaupunkt Ideal,: Diva L 94500 [Radio] ID = 1310011 933x774
Select picture or schematic to display from thumbnails on the right and click for download.
For model Diva L 94500, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF134 AF135 AF136 AF137 AF138 AC126 AC125 AC125 AC128 AC128
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 2 × 4,5; 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Diva L 94500 - Blaupunkt Ideal, Berlin,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 266 x 165 x 80 mm / 10.5 x 6.5 x 3.1 inch
Notes

Betrieb im Auto über Autohalterung HV250 (46,- DM) aus 6-V- oder 12-V-Autobatterie. UKW-Bereich bis 104 MHz.

Net weight (2.2 lb = 1 kg) 2.3 kg / 5 lb 1.1 oz (5.066 lb)
Price in first year of sale 325.00 DM
Source of data Handbuch VDRG 1964/1965 / Radiokatalog Band 1, Ernst Erb
Mentioned in Funkschau
Literature/Schematics (1) -- Original-techn. papers.
