• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1986 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 328093

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Düsseldorf R25 7.643.592.010 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 179 x 51 x 160 mm / 7 x 2 x 6.3 inch

• Notes

• FM Stereo. ARI-Verkehrsfunk.

  Stereo-Cassettenspieler mit Autoreverse, CPS-Musiksuchlauf, Umschaltung für CrO₂- und Metallbänder (70µs Höhen-Entzerrung), db-Rauschverminderungssystem.

• Price in first year of sale
• 298.00 DM

• Mentioned in

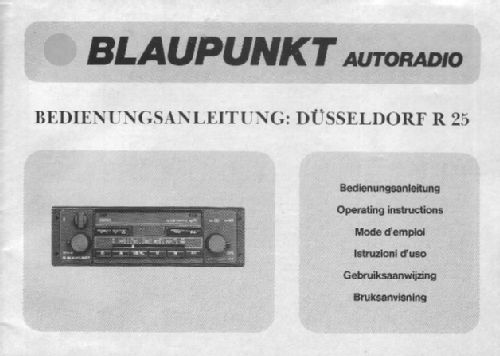

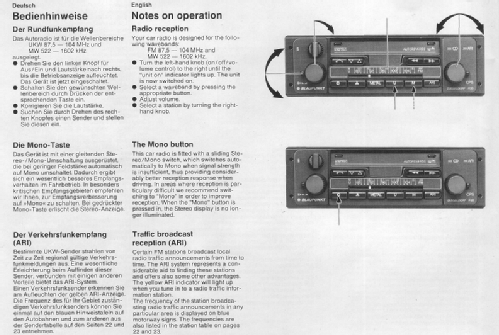

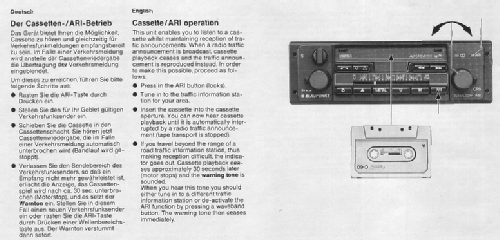

• - - Manufacturers Literature (Bedienungsanleitung)

• Author
• Model page created by Torsten Becker. See "Data change" for further contributors.
