• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1988

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 260987

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

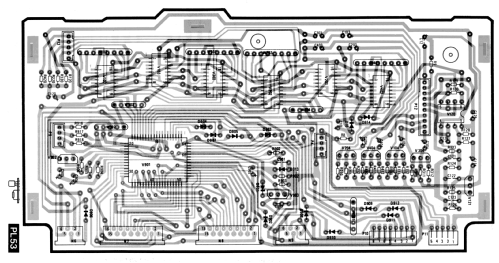

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 14 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

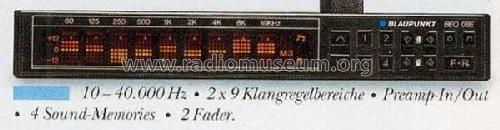

• Model: Electronic Equalizer BEQ 08E 7.607.580.510 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Notes

• Electronic Equalizer für den Audio-Bereich. Dieses Gerät wird zwischen Autoradio und leistungsendstufen geschaltet.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
