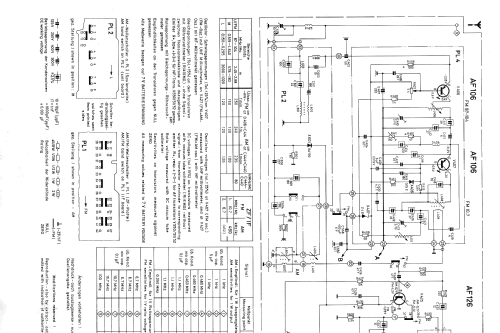

Essen ab V 500001; Blaupunkt Ideal, (ID = 460373) Car Radio

Essen ab V 500001; Blaupunkt Ideal, (ID = 460374) Car Radio

Essen ab V 500001; Blaupunkt Ideal, (ID = 460375) Car Radio

Essen ab V 500001; Blaupunkt Ideal, (ID = 460376) Car Radio

Essen ab V 500001; Blaupunkt Ideal, (ID = 460377) Car Radio

Essen ab V 500001; Blaupunkt Ideal, (ID = 460378) Car Radio

Essen ab V 500001; Blaupunkt Ideal, (ID = 460379) Car Radio

Essen ab V 500001; Blaupunkt Ideal, (ID = 460380) Car Radio

Essen ab V 500001; Blaupunkt Ideal, (ID = 460381) Car Radio

Essen ab V 500001; Blaupunkt Ideal, (ID = 460382) Car Radio
Essen ab V 500001; Blaupunkt Ideal, (ID = 2383615) Car Radio Essen ab V 500001; Blaupunkt Ideal, (ID = 985840) Car Radio
Essen ab V 500001; Blaupunkt Ideal, (ID = 985841) Car Radio Essen ab V 500001; Blaupunkt Ideal, (ID = 2393903) Car Radio
Use red slider bar for more.
Essen ab V 500001; Blaupunkt Ideal, (ID = 2383615) Car Radio
Blaupunkt Ideal,: Essen ab V 500001 [Car Radio] ID = 2383615 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Essen ab V 500001, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1964/1965 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 11: AF106 AF126 AC126 AC128 or. AC152 AD148 AA112 AA119 or. AA112 BA100
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Essen ab V 500001 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 183 x 60 x 146 mm / 7.2 x 2.4 x 5.7 inch
Notes Halbleiter teilweise mehrfach vorhanden.
Ausgangsleistung bei 12 V = 6 W.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Price in first year of sale 298.00 DM
External source of data Erb
Source of data Handbuch VDRG 1964/1965
Literature/Schematics (1) -- Original-techn. papers.
