Exportsuper 33150 ab U 270001
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1963
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 89330
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Q: Blaupunkt, Service-Unterlagen

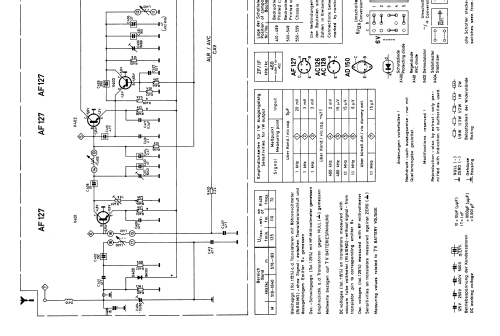

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 460 or 452 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 2 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Exportsuper 33150 ab U 270001 - Blaupunkt Ideal, Berlin,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 183 x 60 x 147 mm / 7.2 x 2.4 x 5.8 inch
- Notes
- Net weight (2.2 lb = 1 kg)
- 1.7 kg / 3 lb 11.9 oz (3.744 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Richard Winter. See "Data change" for further contributors.
