Exportsuper 33350 ab U 820001

Blaupunkt (Ideal), Berlin, später Hildesheim

  • Year
  • 1964
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 156747
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

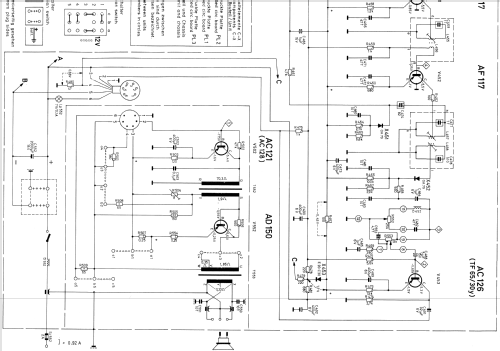

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 460 or 452 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6 ; 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 2 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Exportsuper 33350 ab U 820001 - Blaupunkt Ideal, Berlin,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 183 x 60 x 147 mm / 7.2 x 2.4 x 5.8 inch
  • Notes
  • OMNIMAT-Wählautomatik
  • Net weight (2.2 lb = 1 kg)
  • 2.1 kg / 4 lb 10 oz (4.626 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
